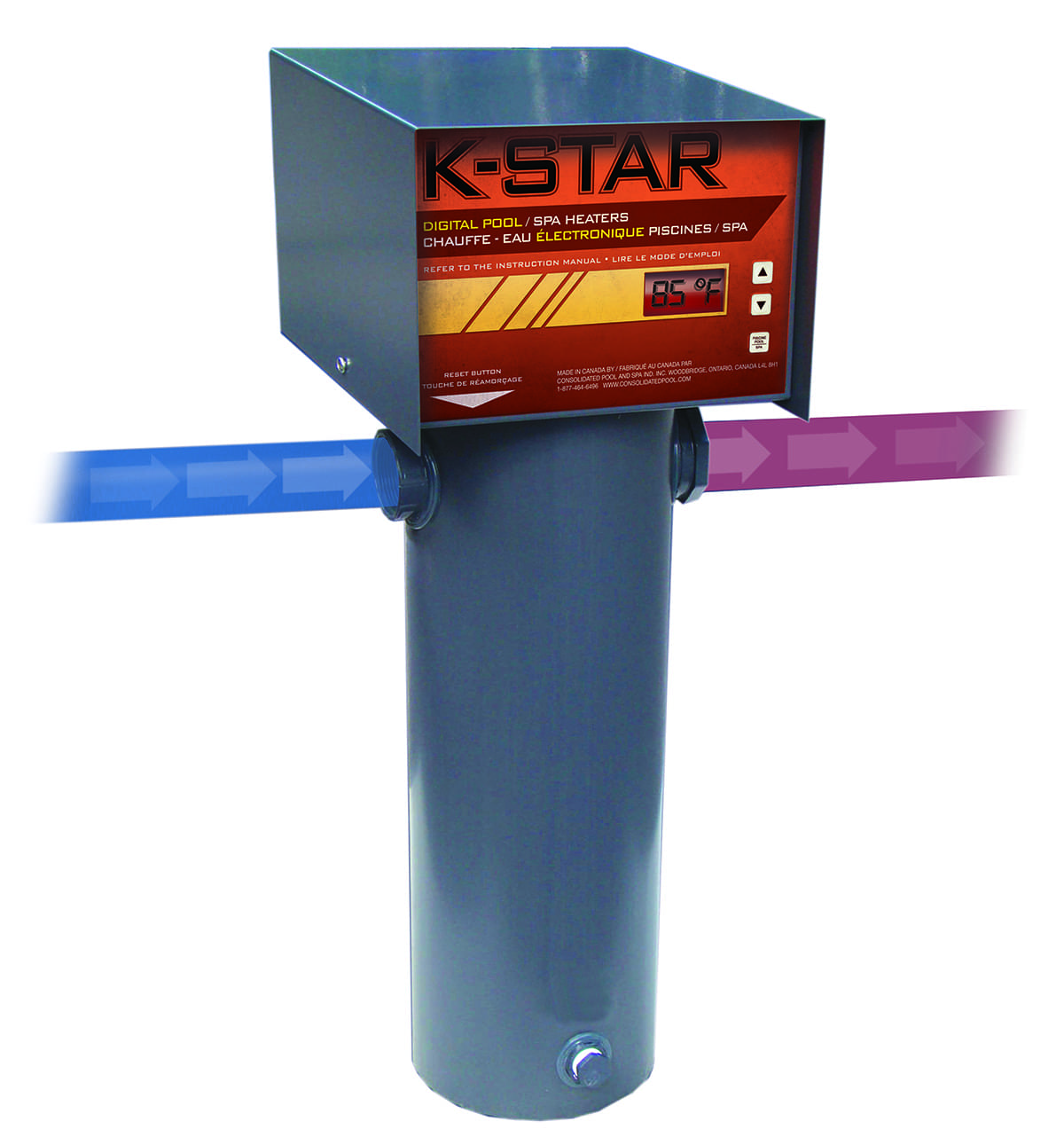

Digital Titanium Salt Water Friendly Electric Water Heater for Pool and Spa

The K-Star Digital Titanium is a specially designed salt‑water‑friendly electric pool heater. K-Star Digital Titanium heaters are electric water heaters for spas, above‑ground pools, and small inground pools. They include a digital thermostat and are designed for salt-water applications. K-Star heaters provide comfort and heat when needed, extending the swimming season and keeping pools or spas warm even in cold weather.

Product Names: K-Star Digital Salt Water Friendly Electric Pool/Spa Heater — 5KW (40,000 L), 10KW (65,000 L), 15KW (90,000 L)

Product Codes: K-5DTT, K-10DTT, K-15DTT

Recommended For Use On: 5KW — above-ground pools; 10KW — above-ground pools; 15KW — above-ground/inground pools

Heater Type: Electric

Connection: 1.5 in. Male Threaded

Voltage: 5KW: 240V/30A; 10KW: 240V/60A; 15KW: 240V/100A

Salt Water Friendly: Yes

Warranty: 1 Year (void outside Canada; void on soft‑sided and commercial pools)

Replacement Parts

Features:

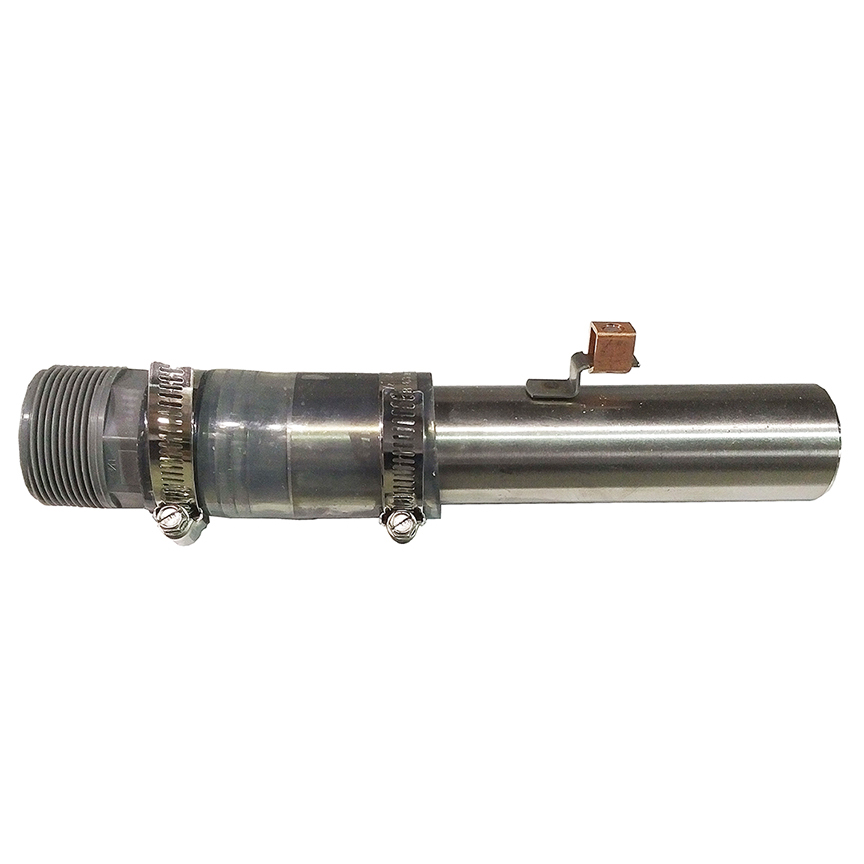

• Leakage Current Collectors may be required depending on local ESA rules (CEC only requires them for hot tubs)
• Digital Temperature Control
• Designed for salt-water applications
• Operating indicator light
• High‑limit manual control reset
• Copper grounding lugs
• Titanium elements for salt‑water use and longer life
• PVC impact‑resistant tank
• Winterizing drain plug
• Keeps temperatures up to 104°F (40°C)
• Pool size capacity: 5KW = 40,000 L (10,000 gal.); 10KW = 65,000 L (15,000 gal.); 15KW = 90,000 L (20,000 gal.)
• 1.5 in. inlet/outlet connections
• K‑Star Heaters made in Canada

Recommended Pool Sizes: 5KW — 12 ft. Round, 15 ft. Round, 12×18 ft. Oval; 10KW — 18 ft. Round, 21 ft. Round, 12×24 ft. Oval, 14×28 ft. Oval; 15KW — 24 ft. Round, 16×32 ft. Oval

Note: Unit must be hardwired and serviced by a licensed electrician. Refer to the owner’s manual for installation and warranty conditions.

Soft‑sided pools (Intex, Coleman, Bestway) are not compatible.

Warranty: 1 Year Manufacturer’s Warranty

Warranty Coverage: K‑Star Electric Heaters include a 1‑year limited manufacturer’s warranty with 90 days on heating elements. Warranty void if damage results from improper installation, misuse, ice, or chemical imbalance. Labour, lost water/chemicals, and additional damages are not covered.

This unit is not compatible with soft‑sided pools.
